TechEd NA 2014 – Microsoft Azure Security and Compliance Overview

TechEd North America 2014, Houston
Microsoft Azure Security and Compliance Overview– Lori Woehler

Day 2, 13 May 2014, 8:30AM-9:45AM (DCIM-B221)

Disclaimer: This post contains my own thoughts and notes based on attending TechEd North America 2014 presentations. Some content maps directly to what was originally presented. Other content is paraphrased or represents my own thoughts and opinions and should not be construed as reflecting the opinion of either Microsoft, the presenters or the speakers.

Executive Summary—Sean’s takeaways

  • Microsoft has done a lot of work to support various security standards
    • In some cases, you can use their documents as part of your own demonstration of compliance
  • Data can be more secure in cloud, given the attention payed to security
  • Customer has greater responsibilities for demonstrating compliance when using IaaS (Infrastructure)
    • Fewer responsibilities when using PaaS (Platform)—just application and data
  • Potentially more compliance issues in EU and Asia, or in certain verticals (e.g. Healthcare)
  • Good compliance cheat sheet that lists typical steps to take

Full video

Lori Woehler – Principal Group Program Manager, Microsoft. CISSP, CISA

LoriWo@Microsoft.com
At Microsoft since 2002
On Azure team for 18 months

Goals

  • Understand how Azure security/compliance helps you to meet obligations
  • Define Azure S&C boundaries and responsibilities
  • Info on new resources and approaches

Other sessions

  • B214 Azure Architectural Patterns
  • B387 Data Protection in Microsoft Azure
  • B386 MarkRu on Cloud Computing
  • B306 Public Cloud Security

Track resources

  • http://Azure.microsoft.com/en-us/support/trust-center/
  • Security Best Practices for enveloping Azure Solutions
  • Windows Azure Security Technical Insights
  • Audit Reports, Certifications and Attestations
    • Includes all details related to audits
    • Can just hand off the stack of paper to outside auditors

Other resources

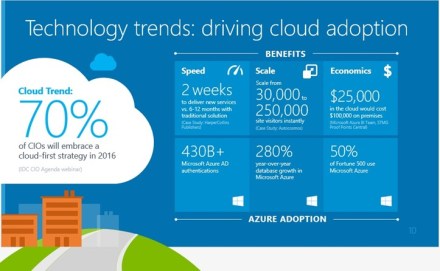

Technology trends: driving cloud adoption

  • 70% of CIOs will embrace cloud-first in 2016
  • Benefits of cloud-first
    • Much faster to deliver solution
    • Scale instantly
    • Cheaper, e.g. $25k in cloud would cost $100k on premises

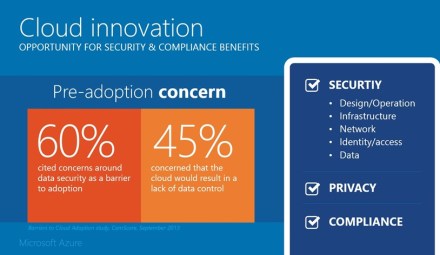

Cloud innovation

  • Pre-adoption concerns (barriers to adoption)
    • 60% – security is concern
    • 45% – worried about losing control of data
  • Security, Privacy, Compliance

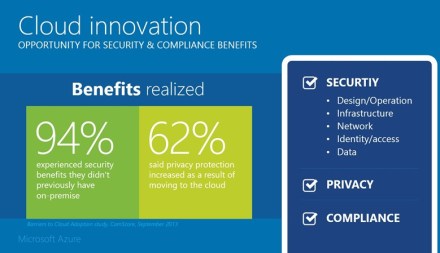

Cloud innovation

  • Benefits realized
    • 94% – new security benefits
    • 62% – privacy protection increased by moving to cloud

Trustworthy foundation timeline

  • 2003 – Trustworthy Computing Initiative
  • Digital Crimes Unit
  • ISO/IEC 27001:2005
  • SOC 1
  • UK G-Cloud Level 2
  • HIPAA/HITECH
  • SOC 2
  • CSA Cloud Controls Matrix
  • FedRAMP/FISMA
  • PCI DSS Level 1

Azure stats

  • 20+ data centers
  • Security Centers of Excellence – combat evolving threats
  • Digital Crimes Unit – legal/technical expertise, disrupt the way cybercriminals operate
    • Info on botnets
    • Bing team publishes blacklist and API to access it
  • Compliance Standards – alphabet soup of standards, audits, certs

Microsoft Azure – Unified platform for modern business

  • Four pillars
    • Compute
    • Data Services
    • App Services
    • Network Services
  • Global Physical Infrastructure

Simplified compliance

  • Information security standards
    • Microsoft interprets, understands
  • Effective controls
    • Map to controls, e.g. SOC 1 type 2, SOC 2 Type 2
    • Evaluate both design and effectiveness of controls
  • Government & industry certifications
    • Ease of audit and oversight

Security compliance strategy

  • Security goals in context of industry requirements
  • Security analytics – detect threats and respond
  • Ensure compliance for high bar of certifications and accreditations
  • Continual monitoring, test, audit

Certifications and Programs

  • Slide shows summary of various certifications
  • ISO/IEC 27001 – broadly accepted outside U.S.
    • Now supporting “Revision 3” under 27001
  • SOC 1, SOC2 – for customers who need financial reporting
    • Five different areas: Security, Privacy, Confidentiality, Integrity, Availability
    • SSAE 16 / ISAE 3402 – accounting standard
  • For IaaS, compliance information is more detailed
  • Increasing focus on government certification and attestation
    • FedRAMP/FISMA

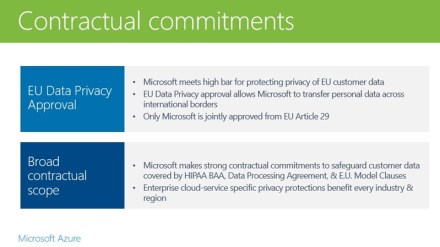

Contractual commitments

  • EU Data Privacy approval
    • Only Microsoft approved from EU Article 29
  • Broad contractual scope
    • Contractual commitments for HIPAA et al

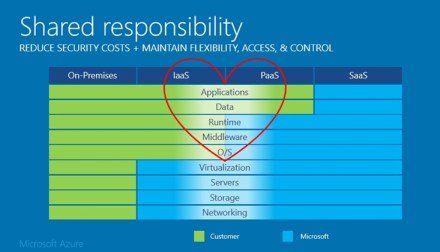

Shared responsibility

  • Where is customer responsible, vs. Microsoft
  • Customer
    • Manages control of data in PaaS
    • Going with PaaS reduces customer responsibility to just Applications and Data
    • Under PaaS, no customer responsibility for Runtime, Middleware, O/S
  • SaaS – no customer responsibility

PaaS Customers – important things to know

Paas Customer Responsibilities

  • Access Control – define security groups and security set
    • Logs to demonstrate that access is due to customer granted permission
  • Data Protection
    • Geo-location – be careful about setting yourself up for potential non-compliance
      • There are obligations in Europe and Asia
      • You can check for access from outside your geo-location boundaries; then potentially restrict access
    • Data Classification and Handling
      • Deciding what data should go up to the cloud
      • Microsoft has published guides to classifying data (schemas)
      • Cloud Controls Matrix – show where you have programmatic obligation
    • Privacy and Data Regulatory Compliance
  • Logging & Monitoring Access and Data Protection
  • ISMS Programmatic Controls
  • Certifications, Accreditations and Audits
    • Can I just use Microsoft’s audit results are our own? No

IaaS Customer Responsibilities

  • Application Security & SDL (Security Development Lifecycle)
    • Can test outside of protection
    • Role segregation, between operations and development
    • E.g. rely on TFS to show process and evidence
  • Access Control – identity management
    • Start with access control to Azure environment itself
    • Then also access control to guest Oss (or SQL Server)
    • Auditors will focus on timing of provisioning/de-provisioning (e.g. remove user when they leave company)
  • Data Protection
    • Microsoft demonstrates that data in your environment is not exposed to other customers
    • Focuses on HyperV when testing
  • O/S Baselines, Patching, AV, Vulnerability Scanning
    • Standard build image in Azure, patched to most recent security update
    • Customers should adopt standard patching cadence; matching your on-premise infrastructure
    • Configuration and management of SSL settings is responsibility of customer
  • Penetration Testing
  • Logging, Monitoring, Incident Response
    • Microsoft has limited ability to access your logs and VM images
  • ISMS Programmatic Controls
    • Impact of documentation of Standard Operating Procedures—quite cumbersome
    • Can start by taking dependency on Azure, in documents that Microsoft have already generated
    • But this doesn’t go all of the way
  • Certifications, Accreditations & Audits
    • Auditors shouldn’t re-test customers in the areas that Azure already covers
    • Documentation that Azure provides should be enough
    • White papers in trust center describe how to leverage Microsoft stuff

Compliance cheat sheet

  • Identify your obligations/responsibilities
    • E.g. contractual
  • Adopt Standard Control Set
    • List of the rules, ties into policies
  • Establish policies and standards
    • “Your plan is your shield”
    • Criteria against which external auditors will evaluate your environment
    • Don’t try to be too broad, trying to cover every possible audit—auditor will apply their own judgment
    • Set level of detail listing deliverable and schedule for deliverable
    • Then you just demonstrate that you’ve met the policies that you’ve set
  • Document system(s) in scope
    • Challenging, if you haven’t implement an asset inventory mechanism
    • Auditors will want to see all assets—physical and virtual (e.g. user accounts, etc).
    • A significant amount of work
    • Log when systems come online and offline (into or out of production)
  • Develop narratives for each control
    • Written description of how a control executes
    • Ties back to specs for systems
    • Auditors will look at spec and then test plan
  • Test control design & execution
  • Identify exceptions and issues
    • No such thing as perfect
    • Document decisions made
    • “Qualified report” – auditor’s report that says that vendor is only partly compliant
  • Determine risk exposure
    • “Transferring risk” to third party—sometimes reduces your risks, sometimes increases your risks
    • Understand both costs and risks
    • Story of Singapore government, including keystroke loggers and video cameras, plus person observing live data feed (for traders using financial service)
  • Define remediation goals and plans
  • Monitor the system
    • And demonstrate to 3rd party that your controls are behaving as expected
  • Report on compliance status
    • Not just reporting for checklist

More detailed cheat sheet

Most Frequently Asked Questions

  • PCI Compliant? – no
  • Can xyz audit Azure? – no
  • Can we have your pen test reports? –
  • Will you fill out this 500 question survey? –
  • Kicked out of the room at this point
