Visual Studio 2010

Generate From Usage in Visual Studio 2010

Posted by

0

Visual Studio 2010 comes with the new Generate From Usage feature.  Let’s take a quick look at how it works.

The basic idea is simple.  You can use classes and their methods and properties before you’ve actually implemented them.  This helps support test-driven development, in which you normally write your test cases first and get them to run by stubbing out all of the actual production code.

Top-Down Design

You might also use the Generate From Usage feature as you implement your code, writing the code in a top-down fashion.  The idea of top-down design is that you start writing your application at the highest level, creating abstractions for all lower-level constructs that are too complex to implement at the highest level.

Generate From Usage Example

Let’s look at an example.  In this example, I have a function that takes some basic info about a book as input and then expects to persist that information in a Book object in a database.  Let’s assume that we haven’t yet created the Book class, or any of its methods or properties.  Then my function might look something like this in Visual Studio:

Notice that since we haven’t yet defined the Book class or any of its methods, Visual Studio underlines the Book identifier with a little red squiggle.

If I hover the mouse over the squiggle, I get a nice error message telling me that Book is not defined.

Now let’s just left-click on the squiggle.  A little blue underline shows up at the start of the unknown identifier.

If you now hover over the blue underline, you’ll see a little smart tag show up.

If you click on the smart tag, you’ll see two options: Generate class for ‘Book’ and Generate new type…

The simplest thing to do at this point is to select the first option, to generate a new Book class.  If we pick that option, a Book.cs file will be automatically added to our project, with a skeleton implementation of the Book class.

namespace WpfApplication3
{
    class Book
    {
    }
}

Notice, however, that focus stays in the original code editor window, so you can continue working in the same place.  At this point, the red squiggle on the Book class has disappeared, since we now have a basic implementation of the class.  Also notice that we see a whole bunch of new squiggles.  Now that Book is a valid class, Visual Studio knows that it does not contain any of the properties or methods that we are referencing.

Detour–Generate New Type

Let’s go back a step.  What would have happened if we’d selected the Generate new type… option?  Let’s try it.  If you pick this option, you’ll get a dialog asking you to enter some more details on the class that you want to create.

Basically, you can choose this option if you want to specify some additional details about the class that you want to create, including the file name, which project to create it in, and the access modifier for the class.  You can also have Visual Studio create other constructs, like a struct or an interface.

Return From Detour

Now let’s go back to the EnterBook() method that we were working on.  Remember that after we generated the Book class, we got a bunch more squiggles.  As before, if you hover over the squiggle, you’ll see what the error is.  For example, we didn’t add a non-default constructor to the Book class, so we’re seeing an error when we try to construct the object.

Once again, we can use the Generate From Usage feature to generate some code for us.  As before, click on the squiggle and then click on the smart tag.  Now we see an option to generate the constructor.

Once again, if you click on this option, nothing will appear to happen in the code window where you are working.  But if you open the Book class, you’ll see that it now has a new constructor.

class Book
{
    private string Title;

    public Book(string Title)
    {
        // TODO: Complete member initialization
        this.Title = Title;
    }
}

But notice that Visual Studio went even one step further.  It also created a private field named Title for us and set the value of the field to the book title that we passed into the constructor.  This is (almost) exactly what we want.  (Likely, we’ll want to convert the private field into a property).

Encapsulating a Field

Actually, since I mentioned it, let’s go ahead and convert this field to a property.  First, I’ll rename the field, from “Title” to “_title”.  I do this because I’m going to want my property to be named Title.  So I want my backing variable (the existing field) to be named something else.  Now just right-click on the field, select Refactor and then select Encapsulate Field.

You’ll then get a dialog asking you to confirm the name of the field.

Click OK and then go back to look at your new code in the Book class.

class Book
{
    private string _title;

    public string Title
    {
        get { return _title; }
        set { _title = value; }
    }

    public Book(string Title)
    {
        // TODO: Complete member initialization
        this._title = Title;
    }
}

Perfect!

Generating a Property Stub

Now let’s go back to our EnterBook function again and once again click on a smart tag.  This time, click on the tag for the line where we’re trying to set the LastName property.  You’ll see the following:

Notice that we’re always seeing options that are appropriate for the type of object that is undefined.  In this case, Visual Studio sees that we are using LastName as a property, so it offers to create it for us.

If you select the option to generate a property stub, rather than a field stub, you’ll get what you expect in your Book class:

    public string LastName { get; set; }

Visual Studio created a new property named LastName and automatically generated the get and set accessors for the property.  Also notice that it figured out the correct type for the property, based on the variable that we were assigning to it.

Generating a Method

We’ll do just one more example.  As expected, if you click on the smart tag at the point where we’re trying to call a Save method, Visual Studio will offer to generate the method.

As you’d expect, Visual Studio once again generates a stub in the Book class for us:

    internal void Save()
    {
        throw new NotImplementedException();
    }

Wrapping Up

There you have it–a quick tour through the new Generate From Usage feature in Visual Studio 2010.  Once you get into the habit of using it, you can be quite a bit more productive when coding in a top-down fashion.

Silverlight 4 Project Types part II – Silverlight Navigation Application

Posted by

4

Last time, I took a look at what gets created when you create a new Silverlight project and choose Silverlight Application as your project type in the New Project wizard.  Now I’d like to look at the Silverlight Navigation Application project type that is new for Silverlight 4.

As usual, I’d like to walk through the process of creating a new project and then take a quick peek at what’s under the covers.  There are a number of pieces here that are complex enough for their own blog post.  So I’ll probably use the phrase “cover this later” a lot.  My goal right not is to just get a high-level view of the Silverlight Navigation Application.

Just a quick note on the tooling: I’m currently still using the Beta 2 build of Visual Studio 2010.  So some of the behavior or layout might be different from the final release.

Below is an image of the New Project dialog in Visual Studio, showing the new Silverlight Navigation Application choice.  This is the type of project that I’ll be creating.

If you pay attention to the text describing each template, displayed over on the right, you’ll see a slight difference between the Silverlight Application and the Silverlight Navigation Application.

  • Silverlight Application – A blank project for creating a rich internet application using Silverlight
  • Silverlight Navigation Application – A project for creating a rich internet application using Silverlight

So with the Silverlight Navigation Application, you get just a bit more of the framework for an actual production Silverlight application.

If we click OK to continue, we get the familiar dialog for creating a sample web project in which to host the Silverlight application.  As before, we can choose between a Web Application, a Web Site, or an MVC Web Site.  I’ll just pick a Web Application project type.

Note the new checkbox on this dialog labeled Enable .NET RIA Services.  RIA Services (now called WCF RIA Services) is an n-tier design pattern in which you have Silverlight on the client, ASP.NET as the middle tier and then some sort of data tier.  More on this later.  For now, you can get an introduction at the WCF RIA Services home page.  I first heard about RIA Services at Microsoft’s PDC 2008 conference and remembering that it sounded very similar in its goals to Rocky Lhotka’s CSLA.NET for Silverlight framework.

Let’s compare the Silverlight Application and Silverlight Navigation Application projects side by side.  Here’s the high-level view.  (The Silverlight Navigation Application is on the right).

The first difference you’ll notice are the Assets and Views folders in the Silverlight Navigation Application.  Taking a quick peek at these folders, you get an idea of what they contain.

The navigation application adds a Resource Dictionary, Styles.xaml, which serves as a sort of stylesheet for the application.  In the Views folder, we get a new control for displaying errors, ErrorWindow.xaml, and a couple pages where we’ll show our actual web site content, About.xaml and Home.xaml.

We’ll find the biggest changes in the MainPage.xaml file and its code-behind.  But before we take a look at the code, let’s just run our application to see what it looks like so far.

Wow.  That’s slick.  Instead of the blank page that we got with the Silverlight Application, it looks like we get a small, but fully functional web site, implemented entirely in Silverlight.

If you move the mouse around a little bit, you’ll discover that you can click on the home and about labels in the upper right corner of the page to navigate between a Home page and an About page.  When the Silverlight application first starts, we get the Home page.  If you click on the about label, you navigate to the About page.

This highlights that there are two fundamentally different ways to use Silverlight:

  • Silverlight controls embedded in ASP.NET web pages
  • Silverlight as the entire application

In the first case, you create individual Silverlight controls for the areas of your web site where you need a richer user experience and embed them in ASP.NET (or plain old HTML) web pages.  You can think of the Silverlight as little islands of interaction embedded in a traditional ASP.NET web site.

The other basic way to use Silverlight, highlight by the Silverlight Navigation Application, is to make Silverlight handle the entire user experience.  Instead of a web page, you have Silverlight running in the browser as a true RIA (Rich Internet Application).

Which is a better way to use Silverlight?  Neither.  You might consider creating your entire web application in Silverlight, to give your users a richer experience.  But doing that also means that you’re hiding your content in a Silverlight black box that search engines might not be able to crack open to get at the content.  It also means that you’re out of luck for users who haven’t downloaded and installed the Silverlight plug-in.

The Main Page

Ok, let’s go back to the XAML for the main page and figure out how this page navigation is working.

If we’re curious about how things get started, we can go back to the project and note that the App object is listed as the startup object for our application.  If we look at its code behind, we see that it sets the main object to be displayed as an instance of MainPage, just like the standard Silverlight Application.

Before we look in any detail at the MainPage object, let’s take a quick look at how it looked for our standard Silverlight Application–the template that Visual Studio calls a “blank” Silverlight project.  Here’s the XAML:

MainPage is just a UserControl that contains a white grid, onto which you can put anything that you like.  This is the tabla rasa for Silverlight controls.

Now let’s take a look at the same XAML, for the MainPage object, in our Silverlight Navigation Application.  We find that it also derives from UserControl and the XAML consists of a UserControl tag, which contains a Grid.  But this time, the grid is far from empty.

There’s a lot of junk in the XAML for the MainPage control.  But if we strip it down to the main elements, we get the following basic outline (starting with the outer Grid, which is contained in the UserControl):

<pre><Grid Name="LayoutRoot">
    <Border Name="ContentBorder">
        <navigation:Frame Name="ContentFrame">
    </Border>
    <Grid Name="NavigationGrid">
        <Border Name="BrandingBorder">
            <StackPanel Name="BrandingStackPanel"/>
        </Border>
        <Border Name="LinksBorder">
            <StackPanel Name="LinksStackpanel"/>
        </Border>
    </Grid>
</Grid>

This looks a bit busy, but it’s pretty straightforward.  The two main objects in the XAML match the two main areas of the screen that we saw when we ran our Silverlight application–a navigation area at the top of the window that contains the “home” and “about” navigation buttons and then our main content area.  This content area is a container (a Frame object) that will contain our actual content (individual Page objects).

In this XAML fragment, ContentFrame is the container where we put all of our main web page content.  It’s contained, in turn, in a Border object that will add some basic formatting to the frame.

The NavigationGrid object, which contains the navigation buttons, is a little less interesting.  So let’s look first at the ContentBorder and the ContentFrame.

Here’s the full XAML fragment for these guys:

<Border x:Name="ContentBorder" Style="{StaticResource ContentBorderStyle}">
    <navigation:Frame x:Name="ContentFrame" Style="{StaticResource ContentFrameStyle}"
                      Source="/Home" Navigated="ContentFrame_Navigated" NavigationFailed="ContentFrame_NavigationFailed">
        <navigation:Frame.UriMapper>
            <uriMapper:UriMapper>
                <uriMapper:UriMapping Uri="" MappedUri="/Views/Home.xaml"/>
                <uriMapper:UriMapping Uri="/{pageName}" MappedUri="/Views/{pageName}.xaml"/>
            </uriMapper:UriMapper>
        </navigation:Frame.UriMapper>
     </navigation:Frame>
</Border>

The ContentBorder is just a wrapper around the ContentFrame that adds:

  • A margin at the top of the page, making room for the navigation controls
  • A gradient brush for the frame’s background

You can see the details by opening the Styles.xaml file and looking at the ContentBorderStyle style.

The Navigation Frame

The frame object (System.Windows.Controls.Frame) is where all of the magic happens.  MSDN says that this control is a “content control that supports navigation”.

The basic idea of a Frame is that you can tell it the URI of the content that you want to have it display.  You normally do this by setting its Source property or by calling its Navigate method.

When our application first starts up, the Source property of the ContentFrame gets set to “/Home”, since it’s set in the XAML.  This causes the /Views/Home.xaml page to get loaded by default.

But we also load content into the frame when we click on the home and about buttons in the navigation grid at the top of the screen.  These two buttons are actually HyperlinkButton objects.  Here’s the XAML for our about button (you can find this in MainPage.xaml):

<HyperlinkButton x:Name="Link2" Style="{StaticResource LinkStyle}"
                 NavigateUri="/About" TargetName="ContentFrame" Content="about"/>

The HyperlinkButton lets us navigate to a new web page by specifying a URI and the target control where that URI should get loaded.  In our case, we tell it to load “/About” as the URI in our ContentFrame.  This will have the same effect as if we’d set the Source property of the ContentFrame to “/About”.

So we change the content in the ContentFrame object at three different points:

  • At startup, we navigate to Home.xaml
  • When user clicks on the about button, we navigate to /Views/About.xaml
  • When user clicks on the home button, we navigate to /Views/Home.xaml

URI Mapping

But how is it that we specified “/About” as a URI and we end up at the page “/Views/About.xaml”?  When we just specify “/About”, how does the Frame get the exact URI that describes how to find the actual .xaml file?

This happens through something called URI Mapping.  URI mapping simply means that you can map one URI to another, using a simple lookup table.  In general, this is used to map longer URIs to shorter, or internal, URIs.  In our case, when we pass the URI “/About” to our Frame, it uses its UriMapper object to map this URI to “/Views/About.xaml”–the true path to the page that we want to load.

You can see the rule that does this mapping in the XAML fragment above that contains the ContentFrame and XAML elements that specify the UriMapper property of the Frame.  We basically have two rules:

  • Map an empty URI to “/Views/Home.xaml”  (the default/home page)
  • Map “/something” to “/Views/something.xaml”

The second rule is the interesting one.  In the individual UriMapping objects, we can do some basic pattern matching, using one or more variables, denoted by braces.  So the rule lets a user enter just a page name and our mapping fills in the rest.  The mapping rule looks like this:

    <uriMapper:UriMapping Uri="/{pageName}" MappedUri="/Views/{pageName}.xaml"/></pre>

The whole point here, when we’re talking about user-entered URIs, is that we can hide the details of the URI path from the user and give them something easier to remember and easier to enter.

In the Silverlight Navigation Application example, users aren’t directly entering URIs.  But it still helps to simplify the URIs that we need to specify when setting up the HyperlinkButton objects.

By the way, it’s interesting to note that the Frame class in the main .NET Framework does not support URI mapping, while the Frame class in the Silverlight version of the framework does.

More Fun With Frames

One other very interesting thing about the Frame control is that not only can you tell it to navigate to various pages, but that it remembers its navigation history.  We could then tap into that history and tell the Frame to navigate forward or backward through its history.  For example, I could add a couple of buttons, label them Forward and Back and then add the following code behind.

    private void btnBack_Click(object sender, RoutedEventArgs e)
    {
        if (ContentFrame.CanGoBack)
            ContentFrame.GoBack();
    }

    private void btnForward_Click(object sender, RoutedEventArgs e)
    {
        if (ContentFrame.CanGoForward)
            ContentFrame.GoForward();
    }

We check the CanGoBack and CanGoForward properties before navigating, because if you try to navigate past either the beginning or end of the history, Silverlight will throw an exception.

Even better, the Frame’s navigation history is automatically integrated to the web browser’s history itself (the journal), using the JournalOwnership property.

You can prove this to yourself by running the application generated by the wizard, clicking on the home and about buttons several times and then using the browser’s Back button to see that you can navigate through the pages that you’ve just visited.

This is actually pretty important.  One of the drawbacks of implementing a Rich Internet Application in a black-box technology like Flash is that if you’re navigating between pages, the user loses the ability to use the browser’s navigation buttons to move back/forward through these pages.  Using a Silverlight Frame control addresses this because it ties directly in with the browser’s navigation history.

Wrapping Up

That’s about it for the Silverlight Navigation Application.  The one remaining thing that you can look at is the ContentFrame_Navigated code, in MainPage.xaml.cs. This function is responsible for changing the visual look of the navigation buttons after you click on one of them, to show which content is currently being shown.

The other thing that’s worth doing is opening one of the pages from this project in Expression Blend.  (As of May, 2010, there is currently a Release Candidate of Blend 4 out that includes support for Silverlight 4).

The easiest way to pop over to Blend from Visual Studio is to just right-click on one of the pages and selected the Open in Expression Blend menu option.

You just click on this option and Blend 4 fires up, opens your project, and then opens the same page in Blend.  Wow.

It’s a good idea to get into the habit of being just as comfortable editing your pages in Blend as you are in Visual Studio.  And that little shortcut in the context menu helps with that quite a bit.

That’s all for now.  Next time I’ll take a look at the next Silverlight project type–the Silverlight Class Library.

Creating a Silverlight 4 Development Machine

Posted by

4

Now that a Silverlight 4 beta is available, it’s time for me to create a new VM where I can develop Silverlight 4 applications.  This development machine will be based on Windows 7 and include:

  • Visual Studio 2010 Beta 2
  • .NET Framework 4 Beta 2
  • Silverlight 4 Beta
  • Expression Blend for .NET 4 Preview

As of January, 2010, this represents the most complete development environment possible for Silverlight 4 applications.

Operating System

I’ll be installing into a virtual machine environment, using VMware Workstation 6.5.1, running on top of Windows 7 (the host operating system).  The guest operating system, where I’ll be installing the development tools, will be Windows 7 Ultimate.

Both my host and guest machines are 32-bit (x86).

Here’s our “clean slate”–a fresh install of Windows 7 Ultimate with nothing else yet installed:

Fresh Install of Windows 7

It’s a beautiful sight.

Overview

Here’s a complete list of what I’ll be installing in the Windows 7 virtual machine:

  1. Visual Studio 2010 Ultimate Beta 2 (x86)    (19 Oct 2009)
  2. Silverlight 4 Beta Tools for Visual Studio 2010    (2 Dec 2009)
  3. Microsoft for Expression Blend for .NET 4 Preview    (16 Nov 2009)
  4. Silverlight Toolkit    (18 Nov 2009)
  5. WCF RIA Services for Visual Studio 2010 Beta 2    (3 Dec 2009)

I’ll include a link to the location of each tool in the sections below.

Install Visual Studio 2010

I got my copy of Visual Studio 2010 through my MSDN subscription, but you can get a free copy (“Go Live” license) here:

Download Visual Studio 2010 Beta 2

I haven’t tried downloading Visual Studio 2010 from this location, so I’m not sure what edition you get.  But even if it’s one of the Express editions, it ought to be fine for developing Silverlight 4 applications.

We start by launching the VS 2010 installation.

Visual Studio 2010 Installation

The installation begins.

Loading Components

We agree to the license, after carefully reading it.

License Agreement

Next, we choose either a Full or Custom installation.  I always go with Custom, so that I can turn off stuff that I don’t want.  Notice that the default installation takes up 6.4 GB.

Custom Installation

The next screen lets me select individual components to install.  It looks like everything is selected by default.

Select Features to Install

Here are my preferred choices.  I have no interest in VB, VC++ or F#.  For now, I’ll just stick with C#.  I do include the Office Development tools, but don’t need the Dotfuscator feature or SharePoint development tools.  I also uncheck SQL Server 2008 Express, since I’ll later install a full version of SQL Server 2008 when I need it.  This brings the install footprint down to 3.6 GB.

My Selected=

The installation process now starts.  It will take a while, since we have a lot of different components to install.

Installation Begins

A reboot is required after installation of the .NET Framework.

Reboot Required

By the way, it’s interesting to note that version 4 of the .NET Framework actually updates the core components of the .NET Framework.  This was not true of version 3.0 or 3.5, which were both just releases that added to existing functionality.  So 4.0 represents the first time that core libraries have been updated since the 2.0 release in Nov, 2005–just over four years ago.

New Core Libraries

Nearly done now..

Installation Nearly Complete

And the installation is now complete.

Installation Complete

Install Silverlight 4 Beta Tools for Visual Studio 2010

Visual Studio 2010 includes support for Silverlight 3, rather than Silverlight 4.  Because Visual Studio 2010 ships a bit earlier than Silverlight 4 (Visual Studio 2010 shipping in March, 2010 and Silverlight 4 shipping sometime in the first half of 2010), Visual Studio 2010 will support Silverlight 3 rather than Silverlight 4.

You can download the Silverlight 4 Tools for Visual Studio from the link below.  Note that this version of the Silverlight 4 tools works only with Beta 2–not Beta 1.

Download Silverlight 4 Beta Tools for Visual Studio 2010 Beta 2

The install starts:

Silverlight 4 Tools Install

There’s another license agreement to read and accept.

License Agreement

The install begins.

Install Begins

And we’re done..

Install Expression Blend Preview for .NET 4

There is a free preview download of Expression Blend that supports targeting both Silverlight 4 Beta and .NET 4 Beta 2.  It is listed as being compatible with Visual Studio 2010 Beta 2 and can be found at:

Download Expression Blend Preview for .NET 4

This is version 3.1.11111.0 of Expression Blend.  It supports creation of both Silverlight 4 Beta and .NET 4 Beta 2 content, but does not support creation of Silverlight 3 or .NET 3.5 content.  It also does not include SketchFlow.

Note: If you are installing the tools to a virtual machine running in VMware Workstation, you may need to make a change in your display settings for the virtual machine before launching the Expression Blend install.  If the 3D graphics setting is enabled for the VM, the Blend install program may not display properly.  Under VMware Workstation 6.5.1, I’ve seen this problem consistently.  The fix is to disabled the 3D graphics setting for the VM.

3D Graphics Setting

One you disable 3D graphics, the first dialog in the install program will display properly.

Blend Install Starts

The Blend install dialogs are certainly beautiful.

Blend Install

The installation starts:

Installation in Progress

And the installation finishes quite politely.

Thank You

Install Silverlight Toolkit

Next, we install the Silverlight Toolkit, which includes a number of additional Silverlight Controls.  You can find the toolkit on CodePlex.

Download Silverlight Toolkit

The install says that this is the toolkit for Silverlight 3, but the Nov, 2009 release has been updated to include support for Silverlight 4.

Toolkit Install Starts

Yet another license agreement.

Toolkit License Agreement

You next get a chance to decide which components of the toolkit to install.

Silverlight Toolkit Features

Ready to start the install now.

Ready to Install

The Silverlight Toolkit install in action:

Install in Progress

And we’re done.

Install Finishes

Install WCF RIA Services

Next, we install the WCF RIA services, which is a framework that allows writing n-tier ASP.NET/Silverlight applications.

You can find the WCF RIA Services install at:

Install WCF RIA Services for Visual Studio 2010 Beta 2

The link above allows you to download and install the WCF RIA Services.  However, I noticed that when I got to this point, it was already installed.  As it turns out, the install for the Silverlight 4 Beta also installed the WCF RIA Services preview.

Documentation

We’ve now downloaded everything that we need for creating Silverlight 4 applications.  One remaining piece of information that will be helpful is that the Silverlight 4 documentation can be found online at:

Silverlight 4 Documentation

Wrapping Up

There we go.  I now have a clean virtual machine that has everything on it that is needed for creating Silverlight 4 applications.  My one last remaining task is to go and save a snapshot of the VM, so that I preserve the “clean” Silverlight 4 development environment.

Microsoft Expression Blend for .NET 4 Preview

Silverlight Gets Full-Fledged Designer Support in Visual Studio 2010

Posted by

1

Trying to wrap my head around the current situation with Silverlight 2 and 3 support in Visual Studio 2008 and 2010, I’m confused enough that I feel like shouting out a line from my daughter’s favorite Dr. Suess book, Fox in Socks:  “Now wait a minute, Mr. Socks Fox”!!

It is a little confusing.  But I think I now understand who supports what and I’ll take a stab at jotting it down, for future reference.

Visual Studio 2008 SP1

Visual Studio 2010

  • Supports both Silverlight 2 and Silverlight 3
  • Can install both on the same development machine
  • Each Silverlight project targets one of the two Silverlight versions
  • Silverlight 2 — need to install the Silverlight 2 SDK manually
  • Silverlight 3 — install manually

Ok, as far as I can tell, that’s the current situation.

This basically boils down to two questions:

  • Do I want to develop in Silverlight 2 or Silverlight 3?
    • Silverlight 2 is more stable and is officially released
    • Silverlight 3 (beta) — new controls, navigation framework, out-of-browser support
  • Which version of Visual Studio do I want to use?
    • VS 2008 — easier install experience, stable/released
    • VS 2010 — improved tooling for Silverlight & WPF

The last point is what I want to talk about.  Notice that improved tooling for Silverlight is a feature of Visual Studio, not of Silverlight itself.  Visual Studio 2010 finally gives us full design-time drag-and-drop support for Silverlight.

Let’s see what this looks like.  But first, let’s go back and take a look at the Silverlight design-time experience in Visual Studio 2008.  (I’m using Silverlight 3 here).

The Bad Old Days – Visual Studio 2008 SP1

Until now, Silverlight developers haven’t had the most basic tooling enjoyed by even the lowliest VB6 developers.  Namely — the ability to drag and drop controls onto a design surface and set their properties right in the designer.

Specifically, here’s what you couldn’t do.  If you look at the split window for Silverlight controls in the designer, you’ll notice that the upper pane is labeled “Preview”.

Preview Pane

This was a “Preview” pane because all it could do was to render your XAML on the screen as a preview of how it would eventually look in your Silverlight application.  You couldn’t drag controls onto this surface.  You also couldn’t select any controls in order to reposition them or to set their properties.

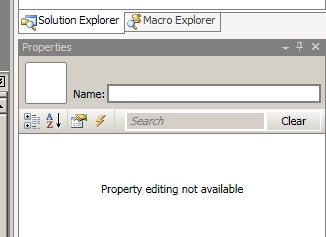

In Visual Studio 2008, if you try dragging Silverlight controls onto this Preview window, you just get a big fat “don’t do this” icon.  Even sadder, you can’t select any controls.  If you look at the properties window in Visual Studio, you just see the following sad message:

No Property Editing

Thankfully, you could at least drag and drop controls down into your XAML.  This would at least insert the proper XAML tags for the control that you’d selected.  But you just got an empty tag.  (In the picture below, I’ve just dragged a Button into my XAML).

Drag Into XAML

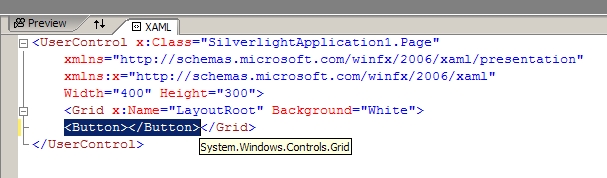

And, although we weren’t able to set property values in the property editor, there was some consolation in that Intellisense worked in the XAML code.

Intellisense in XAML

So the Silverlight development environment was workable, but not ideal.  Also, you could always author/edit your UIs in Expression Blend.  But then there was a big learning curve to tackle.

Enter Visual Studio 2010

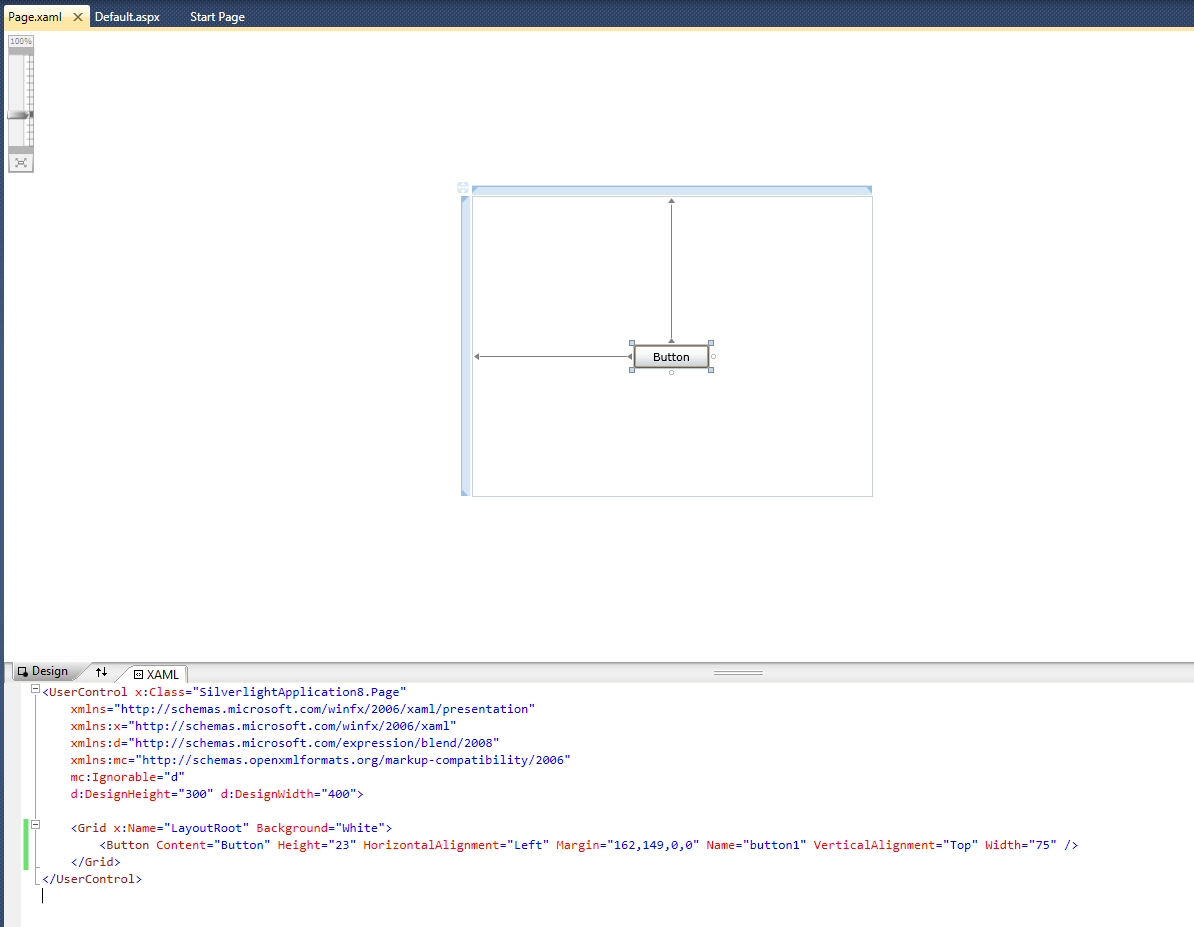

In Visual Studio 2010, we finally have full designer support for Silverlight applications.  In the picture below, I’ve just dragged a Button from the toolbox onto the design surface.

Silverlight Design Surface

It makes me want to weep.  (Who would have thought that a developer would be so happy with being able to drag a button onto a form)?

Not only did the designer let me drag the button onto a design surface, but now it actually gives me a little more than an empty/default Button tag in my XAML.  I actually get a sensibly configured button object, with a reasonable size and a preset label.  Also notice that the upper pane is now labeled “Design”, rather than “Preview”.

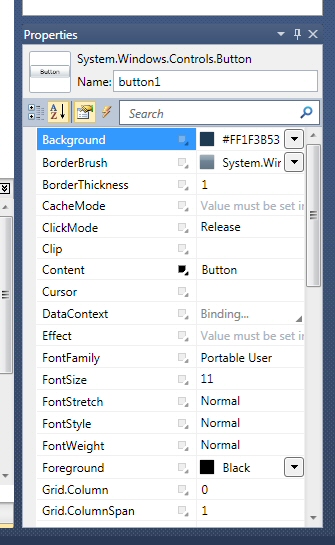

But don’t weep yet.  It gets better.  You can actually left-click to select the button in the designer.  When you do this, you’ll see that you can now actually set properties for the button in the property window.

Property Window

Now you may weep or cheer, depending on your particular emotional reaction.

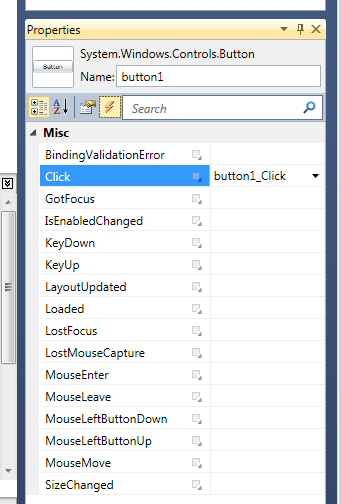

You’ll also notice that you can now click on the little event icon and then double-click to generate event handlers in your code-behind.  (As opposed to using Intellisense in the XAML to discover relevant events).

Event Properties

This is great, although I still don’t understand why there is no dropdown in the properties window to select the individual controls.  Is there a good reason why neither WPF or Silverlight applications allow selecting individual controls from the property window?

Also note that all of the above is possible in both Silverlight 2 and Silverlight 3.

Where Are We?

So clearly, Silverlight is now a full-fledged citizen in Visual Studio, with full tooling.  This may not seem like much, but for anyone who works with Silverlight a lot, it will make a huge difference.  Not to mention a much shallower learning curve for developers coming up to speed with Silverlight.

Mr. Socks Fox wasn’t spouting blibber blubber after all.

Installing Silverlight 3 with Visual Studio 2010 – Step by Step

Posted by

2

[Note, 21-May-2010.  Silverlight 4 has been released.  For a step-by-step guide to installing Silverlight 4 with Visual Studio 2010, see my post Creating a Silverlight 4 Development Machine].

A beta version of Silverlight 3 was released at MIX09 in March.  Since a beta version of Visual Studio 2010 was also just released–in May–it makes sense to set up a Silverlight 3 and Visual Studio 2010 development environment.  My last post included screenshots of the installation process for Visual Studio 2010.  This post will cover installing the remaining bits needed for a Silverlight 3 development environment.

Note: Also take a look at the official Getting Started page for Silverlight 3.

This post will describe installing Silverlight 3 bits on top of a clean Windows 7 / Visual Studio 2010 environment.  I won’t install the Silverlight 2 components, so the resulting environment will be targeted exclusively at Silverlight 3.

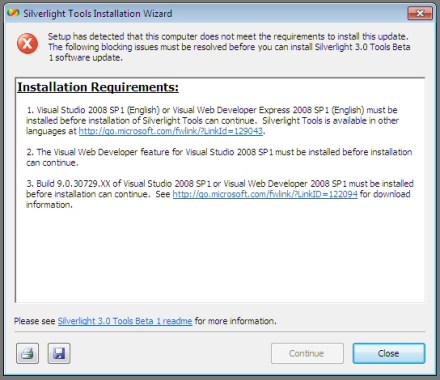

At the moment, the Silverlight 3 beta is targeted at Visual Studio 2008 SP1, rather than Visual Studio 2010.  (See Tim Heuer’s blog post explaining this).  What this means is that we can’t just run the Silverlight 3 Tools installer.  If you try, you’ll get the following error.

Can't Install on VS 2010

Installing the Silverlight 3 Beta SDK

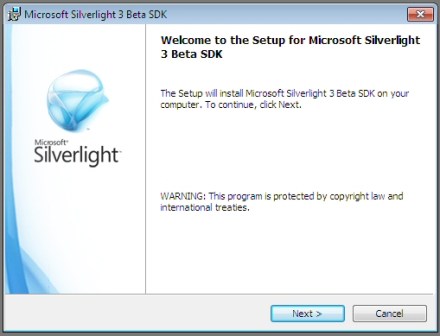

Instead, you’ll need to just install the Silverlight 3 Beta SDK manually.  Once you download the SDK installer and launch it, you’ll get the following screen:

SDK Welcome

Then you get a license dialog.  Note the comment about this beta license expiring 30 days after the commercial release of Silverlight 3, but no later than 30 Sep, 2009.  Does this imply that we’ll see a final release of Silverlight 3 by 30 Aug, 2009?

License Dialog

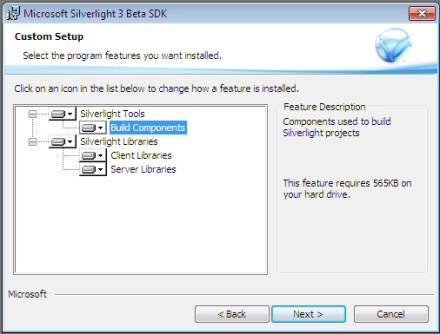

If you do a custom install, you’ll see the following features and components listed:

Custom Install

Here’s a quick summary of what is being installed:

  • Silverlight Tools – Components needed for building Silverlight applications
    • The core Silverlight DLLs, e.g. agcore.dll, coreclr.dll, et al
  • Build Components – Components used to build Silverlight projects
    • Microsoft.Silverlight.Build.Tasks.dll,  et al
  • Client Libraries – Silverlight Client Libraries and Controls
    • System.Xml.Serialization.dll, System.Xml.Linq.dll, System.Windows.Controls.Navigation, et al
  • Server Libraries – Silverlight Server Libraries and Controls
    • System.Web.Silverlight.dll, et al

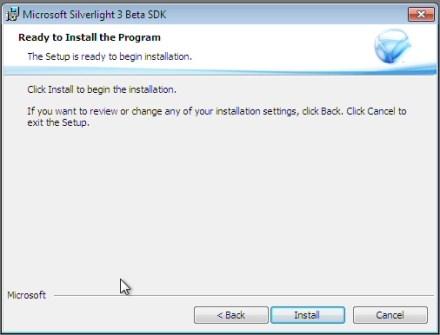

Now we’re ready to install:

Ready to Install

Install continues:

Installing

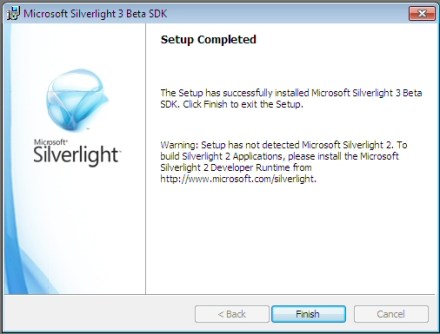

The install completes, and a dialog reminds us that the actual Silverlight 3 Beta runtime is not yet present.  (Actually, there is an error in this dialog — it’s reminding us that the Silverlight 2 runtime is not present).

SDK Done

Installing the Silverlight 3 Developer Runtime

Now we need to install the actual Silverlight 3 runtime, which you can download from here.

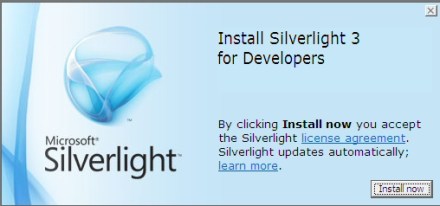

We start with the familiar Silverlight install splash screen (now branded as Silverlight 3 for Developers).

For Devs

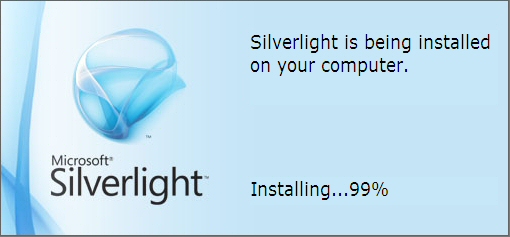

Off we go..

Installing Runtime

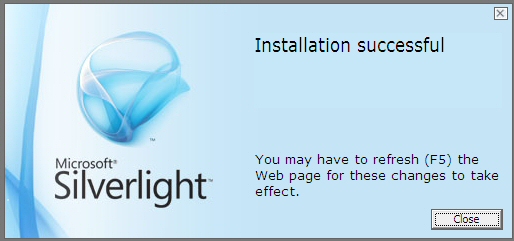

The runtime install completes quickly.

Runtime Installed

Pretty simple.  You now have all of the important stuff that you need for developing Silverlight 3 applications with Visual Studio.

Building a Silverlight Application with Visual Studio 2010

When you bring up the New Project wizard in Visual Studio, you’ll see two types of Silverlight projects listed:

  • Silverlight Application
  • Silverlight Class Library

New Project

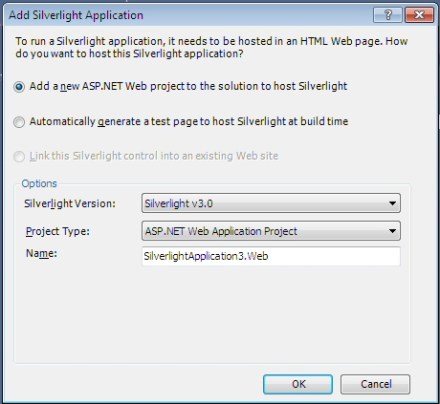

If you create a new Silverlight Application, you’ll see the Add Silverlight Application dialog.  But notice that there is now a dropdown labeled Silverlight Version.  This defaults to Silverlight 2.0, but you can select Silverlight v3.0 to create a Silverlight 3 application.

Create Silverlight 3 Application

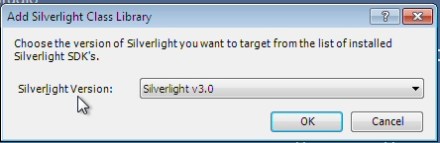

You’ll see a similar dialog if you try to create a Silverlight Class Library.

Create Silverlight Class Library

The Silverlight Navigation Application

But notice that there is one Visual Studio template that shows up if you install Silverlight 3 Beta in Visual Studio 2008 SP1 that does not show up in Visual Studio 2010 — the Silverlight Navigation Application.  This is installed as part of the Silverlight 3 Tools installer, which we were unable to run.

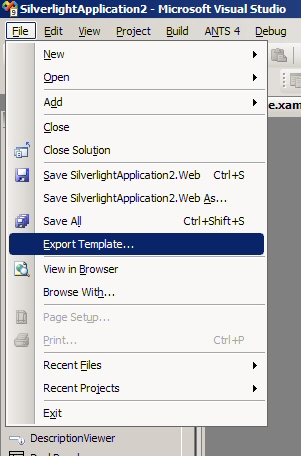

We need to pull this particular template from Visual Studio 2008 SP1 into Visual Studio 2010.  To do this, install the Silverlight 3 Tools installer on a machine that is running Visual Studio 2008 SP1.  Then fire up Visual Studio 2008, create a Silverlight Navigation Application project, and select Export Template from the File menu.

Export Template

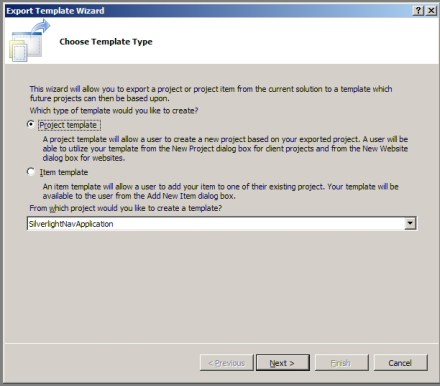

You’ll see a dialog asking you to select the project to export a template for.  We’ll select the main navigation application.

Export Template

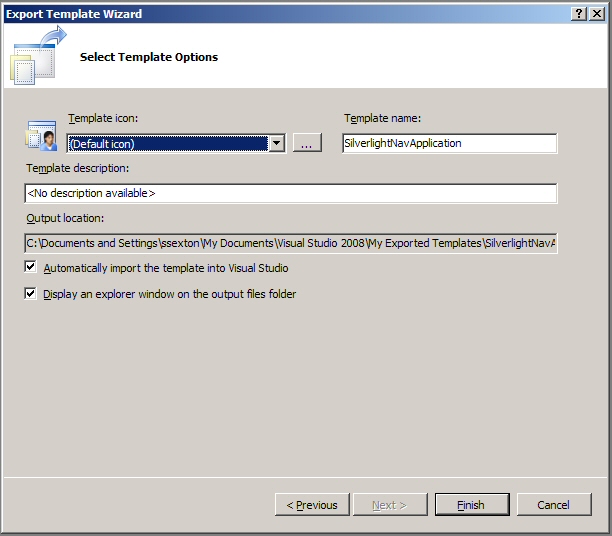

You can also give the new template a description and select an icon.

Template Part II

When you’re done, a new Windows Explorer window will pop up, containing a .zip file for your new template.  Now copy this .zip file to the following directory on your Visual Studio 2010 machine:

C:\Users\myname\Documents\Visual Studio 10\Templates\ProjectTemplates\Visual C#

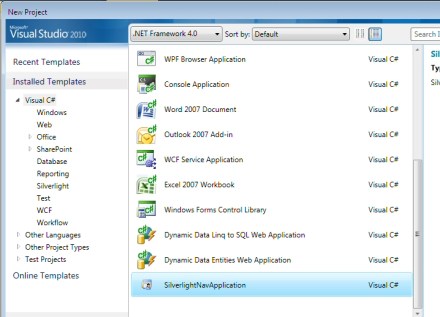

Now when you bring up the New Project wizard in Visual Studio 2010, you’ll see a new template that you can use to create a Silverlight Navigation Application.

New Template in Action

Wrapping Up

That should do it — you now have a fully functional Silverlight 3 / Visual Studio 2010 environment.

Technorati tags: Silverlight, Silverlight 3, Visual Studio 2010

Visual Studio 2010 Install Screenshots

Posted by

5

Beta 1 of Visual Studio is now available on MSDN.  (If you have the appropriate MSDN subscription).  Here is a complete set of screenshots, outlining the installation experience.

Note: I installed VS 2010 Beta 1 on a clean virtual machine running Windows 7 Build 7100 (RC).

We start with the familiar install startup menu:

First screen

Then we get a banner page, as things start up.

Install Banner

Next, we get a license page, as well as an overview of what is going to be installed.  The key components are:

  • VC 9.0 and 10.0 runtime libraries
  • .NET Framework 4 Beta 1    (more info)
  • Help 3.0 Beta 1    (more info)
  • Visual Studio Macro Tools
  • Visual Studio 2010 Professional Beta 1    (more info)

License Page

Next up is an options page:

Options Page

Now the actual installation begins and we can see a more complete list of all the components that will be installed.  For completeness, here’s the full list:

  • VC 9.0 Runtime
  • VC 10.0 Runtime
  • Microsoft .NET Framework 4 Beta 1
  • Microsoft Help 3.0 Beta 1
  • Microsoft Visual Studio Macro Tools
  • Microsoft Visual Studio 2010 Professional Beta 1
  • Microsoft Web Deployment Tool
  • Visual Studio Tools for the Office System 4.0 Runtime
  • Microsoft Office Development Tools for Visual Studio 2010
  • Dotfuscator Software Services – Community Edition
  • Microsoft SQL Server Compact 3.5 SP1
  • SQL Server Compact Tools for Visual Studio 2010 Beta 1
  • Microsoft Sync Framework Runtime v1.0
  • Microsoft Sync Services for ADO.NET v2.0
  • Microsoft Sync Framework Services v1.0
  • Microsoft Sync Framework SDK v1.0
  • Microsoft SQL Publishing Wizard 1.4
  • SQL Server System CLR Types
  • Shared Management Objects
  • Microsoft SQL Server 2008 Express Edition

Wow.  This is going to take a while.

Installation Begins

You’ll have to reboot after the .NET Framework 4 installation.

Reboot Required

Go get a cup of coffee while the remaining components install..

Coffee Break

You’ll get a warning dialog, indicating that SQL Server 2008 has compatibility issues on Windows 7 and suggesting that you install SP1.

Compatibility

I just clicked the Run Program button and proceeded with the install.  A little bit later, I got a second compatibility warning dialog, also mentioning SQL Server 2008.  An external DOS window was also spawned, running a setup.exe command.

Compatibility #2

Finally, everything finishes up and we’re done!

Installation Complete

After the install completes, we get the main autorun window again and the link for checking for service releases is now active.

Autorun #2

If you click the Check for Service Releases link, you’ll be redirected to an update web page, which in turn allows firing up the Windows Update applet.  When I tried this (29 Jun 2009), no updates were found.

Finally, we bring up Visual Studio 2010 for the first time.

Splash Screen

As with earlier versions, when you start Visual Studio for the first time, you’re asked to choose a language, which dictates how the environment is set up.  I’m a C# guy.

When things finally start up, we see the new Start Page for the first time.

Start Page

The New Project dialog also gets a fresh look.

New Project

Finally, we create an empty WPF Application.

WPF Application

Keynote #2 – Ozzie, Sinofsky, Guthrie, Treadwell

Posted by

0

PDC 2008, Day #2, Keynote #2, 2 hrs

Ray Ozzie, Steven Sinofsky, Scott Guthrie, David Treadwell

Wow.  In contrast to yesterday’s keynote, where Windows Azure was launched, today’s keynote was the kind of edge-of-your-seat collection of product announcements that explain why people shell out $1,000+ to come to PDC.  The keynote was a 2-hr extravaganza of non-stop announcements and demos.

In short, we got a good dose of Windows 7, as well as new tools in .NET 3.5 SP1, Visual Studio 2008 SP1 and the future release of Visual Studio 2010.  Oh yeah—and an intro to Office 14, with online web-based versions of all of your favorite Office apps.

Not to mention a new Paint applet with a ribbon interface.  Really.

Ray Ozzie Opening

The keynote started once again today with Ray Ozzie, reminding us of what was announced yesterday—the Azure Services Platform.

Ray pointed out that while yesterday focused on the back-end, today’s keynote would focus on the front-end: new features and technologies from a user’s perspective.

He pointed out that the desktop-based PC and the internet are still two completely separate world.  The PC is where we sit when running high-performance close-to-the-metal applications.  And the web is how we access the rest of the world, finding and accessing other people and information.

Ray also talked about the phone being the third main device where people spend their time.  It’s always with us, so can respond to our spontaneous need for information.

The goal for Microsoft, of course, is that applications try to span all three of these devices—the desktop PC, the web, and the phone.  The apps that can do this, says Ozzie, will deliver the greatest value.

It’s no surprise either that Ray mentioned Microsoft development tools as providing the best platform for developing these apps that will span the desktop/web/phone silos.

Finally, Ray positioned Windows 7 as being the best platform for users, since we straddle these three worlds.

Steven Sinofsky

Next up was Steven Sinofsky,Senior VP for Windows and Windows Live Engineering Group at Microsoft. Steven’s part of the keynote was to introduce Windows 7.  Here are a couple of tidbits:

  • Windows 7 now in pre-beta
  • Today’s pre-beta represents “M3”—a feature-complete milestone on the way to Beta and eventual RTM.  (The progression is M1/M2/M3/M4/Beta)
  • The beta will come out early in 2009
  • Release still targeted at 3-yrs after the RTM of Vista, putting it at November of 2009
  • Server 2008 R2 is also in pre-beta, sharing its kernel with Windows 7

Steven mentioned three warm-fuzzies that Windows 7 would focus on:

  • Focus on the personal experience
  • Focus on connecting devices
  • Focus on bringing functionality to developers

Julie Larson-Green — Windows 7 Demo

Next up was Julie Larson-Green, Corporate VP, Windows Experience.  She took a spin through Windows 7 and showed off a number of the new features and capabilities.

New taskbar

  • Combines Alt-Tab for task switching, current taskbar, and current quick launch
  • Taskbar includes icons for running apps, as well as non-running (icons to launch apps)
  • Can even switch between IE tabs from the taskbar, or close tabs
  • Can close apps directly from the taskbar
  • Can access app’s MRU lists from the taskbar (recent files)
  • Can drag/dock windows on desktop, so that they quickly take exactly half available real estate

Windows Explorer

  • New Libraries section
    • A library is a virtual folder, providing access to one or more physical folders
    • Improved search within a library, i.e. across a subset of folders

Home networking

  • Automatic networking configuration when you plug a machine in, connecting to new “Homegroup”
  • Automatic configuration of shared resources, like printers
  • Can search across entire Homegroup (don’t need to know what machine a file lives on)

Media

  • New lightweight media player
  • Media center libraries now shared & integrated with Windows Explorer
  • Right-click on media and select device to play on, e.g. home stereo

Devices

  • New Device Stage window, summarizing all the operations you can perform with a connected device (e.g. mobile device)
  • Configure the mobile device directly from this view

Gadgets

  • Can now exist on your desktop even without the sidebar being present

Miscellaneous

  • Can share desktop themes with other users
  • User has full control of what icons appear in system tray
  • New Action Center view is central place for reporting on PC’s performance and health characteristics

Multi-touch capabilities

  • Even apps that are not touch-aware can leverage basic gestures (e.g. scrolling/zooming).  Standard mouse behaviors are automatically mapped to equivalent gestures
  • Internet Explorer has been made touch-aware, for additional functionality:
    • On-screen keyboard
    • Navigate to hyperlink by touching it
    • Back/Forward with flick gesture

Applet updates

  • Wordpad gets Ribbon UI
  • MS Paint gets Ribbon UI
  • New calculator applet with separate Scientific / Programmer / Statistics modes

Sinofsky Redux

Sinofsky returned to touch on a few more points for Windows 7:

  • Connecting to Live Services
  • Vista “lessons learned”
  • How developers will view Windows 7

Steve talked briefly about how Windows 7 will more seamlessly allow users to connect to “Live Essentials”, extending their desktop experience to the cloud.  It’s not completely clear what this means.  He mentioned the user choosing their own non-Microsoft services to connect to.  I’m guessing that this is about some of the Windows 7 UI bits being extensible and able to incorporate data from Microsoft Live services.  Third party services could presumably also provide content to Windows 7, assuming that they implemented whatever APIs are required.

The next segment was a fun one—Vista “lessons learned”.  Steve made a funny reference to all of the feedback that Microsoft has gotten on Vista, including a particular TV commercial.  It was meant as a clever joke, but Steve didn’t get that many laughs—likely because it was just too painfully true.

Here are the main lessons learned with Vista.  (I’ve changed the verb tense slightly, so that we can read this as more of a confession).

  • The ecosystem wasn’t ready for us.
    • Ecosystem required lots of work to get to the point where Vista would run on everything
    • 95% of all PCs running today are indeed able to run Vista
    • Windows 7 is based on the same kernel, so we won’t run into this problem again
  • We didn’t adhere to standards
    • He’s talking about IE7 here
    • IE8 addresses that, with full CSS standards compliance
    • They’ve even released their compliance test results to the public
    • Win 7 ships with IE8, so we’re fully standards-compliant, out of the box
  • We broke application compatibility
    • With UAC, applications were forced to support running as a standard user
    • It was painful
    • We had good intentions and Vista is now more secure
    • But we realize that UAC is still horribly annoying
    • Most software now supports running as a standard user
  • We delivered features, rather than solutions to typical user scenarios
    • E.g. Most typical users have no hope of properly setting up a home network
    • Microsoft failed to deliver the “last mile” of required functionality
    • Much better in Windows 7, with things like automatic network configuration

The read-between-the-lines takeaway is we won’t make these same mistakes with Windows 7.  That’s a clever message.  The truth is that these shortcomings have basically already been addressed in Vista SP1.  So because Windows 7 is essentially just the next minor rev of Vista, it inherits the same solutions.

But there is one shortcoming with Vista that Sinofsky failed to mention—branding.  Vista is still called “Vista” and the damage is already done.  There are users out there who will never upgrade to Vista, no matter what marketing messages we throw at them.  For these users, we have Windows 7—a shiny new brand to slap on top of Vista, which is in fact a stable platform.

This is a completely reasonable tactic.  Vista basically works great—the only remaining problem is the perception of its having not hit the mark.  And Microsoft’s goal is to create the perception that Windows 7 is everything that Vista was not.

Enough ranting.  On to Sinofsky’s list of things that Windows 7 provides for Windows developers:

  • The ribbon UI
    • The new Office ribbon UI element has proved itself in the various Office apps.  So it’s time to offer it up to developers as a standard control
    • The ribbon UI will also gradually migrate to other Windows/Microsoft applications
    • In Windows 7, we now get the ribbon in Wordpad and Paint.  (I’m also suspecting that they are now WPF applications)

  • Jump lists
    • These are new context menus built into the taskbar that applications can hook into
    • E.g. For “most recently used” file lists
  • Libraries
    • Apps can make use of new Libraries concept, loading files from libraries rather than folders
  • Multi-touch, Ink, Speech
    • Apps can leverage new input mechanisms
    • These mechanisms just augment the user experience
    • New/unique hardware allows for some amazing experiences
  • DirectX family
    • API around powerful graphics hardware
    • Windows 7 extends the DirectX APIs

Next, Steven moved on to talk about basic fundamentals that have been improved in Windows 7:

Decrease

  • Memory — kernel has smaller memory footprint
  • Disk I/O — reduced registry reads and use of indexer
  • Power  — DVD playback cheaper, ditto for timers

Increase

  • Speed  — quicker boot time, device-ready time
  • Responsiveness  — worked hard to ensure Start Menu always very responsive
  • Scale  — can scale out to 256 processors

Yes, you read that correctly—256 processors!  Hints of things to come over the next few years on the hardware side.  Imagine how slow your single-threaded app will appear to run when running on a 256-core machine!

Sinofsky at this point ratcheted up and went into a sort of but wait, there’s more mode that would put Ron Popeil to shame.  Here are some other nuggets of goodness in Windows 7:

  • Bitlocker encryption for memory sticks
    • No more worries when you lose these
  • Natively mount/managed Virtual Hard Drives
    • Create VHDs from within Windows
    • Boot from VHDs
  • DPI
    • Easier to set DPI and work with it
    • Easier to manage multiple monitors
  • Accessibility
    • Built-in magnifier with key shortcuts
  • Connecting to an external projector in Alt-Tab fashion
    • Could possibly be the single most important reason for upgrading to Win 7
  • Remote Desktop can now access multiple monitors
  • Can move Taskbar all over the place
  • Can customize the shutdown button  (cheers)
  • Action Center allows turning off annoying messages from various subsystems
  • New slider that allows user to tweak the “annoying-ness” of UAC (more cheers)

As a final note, Sinofsky mentioned that as developers, we had damn well all be developing for 64-bit platforms.  Windows 7 is likely to ship a good percentage of new boxes on x64.  (His language wasn’t this strong, but that was the message).

Scott Guthrie

As wilted as we all were with the flurry of Windows 7 takeaways, we were only about half done.  Scott Guthrie, VP, Developer Division at Microsoft, came on stage to talk about development tools.

He started by pointing out that you can target Windows 7 features from both managed (.NET) and native (Win32) applications.  Even C++/MFC are being updated to support some of the new features in Windows 7.

Scott talked briefly about the .NET Framework 3.5 SP1, which has already released:

  • Streamlined setup experience
  • Improved startup times for managed apps  (up to 40% improvement to cold startup times)
  • Graphics improvements, better performance
  • DirectX interop
  • More controls
  • 3.5 SP1 built into Windows 7

Scott then demoed taking an existing WPF application and adding support for Windows 7 features:

  • He added a ribbon at the top of the app
  • Add JumpList support for MRU lists in the Windows taskbar
  • Added Multi-touch support

Scott announced a new WPF toolkit being released this week that includes:

  • DatePicker, DataGrid, Calendar controls
  • Visual State Manager support (like Silverlight 2)
  • Ribbon control  (CTP for now)

Scott talked about some of the basics coming in .NET 4 (coming sometime in 2009?):

  • Different versions of .NET CLR running SxS in the same process
  • Easier managed/native interop
  • Support for dynamic languages
  • Extensibility Component Model (MEF)

At this point, Scott also starts dabbling in the but wait, there’s more world, as he demoed Visual Studio 2010:

  • Much better design-time support for WPF
  • Visual Studio itself now rewritten in WPF
  • Multi-monitor support
  • More re-factoring support
  • Better support for Test Driven Development workflow
  • Can easily create plugins using MEF

Whew.  Now he got to the truly sexy part—probably the section of the keynote that got the biggest reaction out of the developer crowd.  Scott showed off a little “third party” Visual Studio plug-in that pretty-formatted XML comments (e.g. function headers) as little graphical WPF widgets.  Even better, the function headers, now graphically styled, also contained hot links right into a local bug database.  Big cheers.

Sean’s prediction—this will lead to a new ecosystem for Visual Studio plugins and interfaces to other tools.

Another important takeaway—MEF, the new extensibility framework, isn’t just for Visual Studio.  You can also use MEF to extend your own applications, creating your own framework.

Tesco.com Demo of Rich WPF Client Application

Here we got our obligatory partner demo, as a guy from Tesco.com showed off their snazzy application that allowed users to order groceries.  Lots of 2D and 3D graphical effects—one of the more compelling WPF apps that I’ve seen demoed.

Scott Redux

Scott came back out to talk a bit about new and future offerings on the web development side of things.

Here are some of the ASP.NET improvements that were delivered with .NET 3.5 SP1:

  • Dynamic Data
  • REST support
  • MVC (Model-View-Controller framework)
  • AJAX / jQuery  (with jQuery intellisense in Visual Studio 2008)

ASP.NET 4 will include:

  • Web Forms improvements
  • MVC improvements
  • AJAX improvements
  • Richer CSS support
  • Distributed caching

Additionally, Visual Studio 2010 will include better support for web development:

  • Code-focused improvements  (??)
  • Better JavaScript / AJAX tooling
  • Design View CSS2 support
  • Improved publishing and deployment

Scott then switched gears to talk about new and future offerings for Silverlight.

Silverlight 2 was just RTM’d two weeks ago.  Additionally, Scott presented two very interesting statistics:

  • Silverlight 1 is now present on 25% of all Internet-connected machines
  • Silverlight 2 has been downloaded to 100 million machines

IIS will inherit the adaptive (smooth) media streaming that was developed for the NBC Olympics web site.  This is available today.

A new Silverlight toolkit is being released today, including:

  • Charting controls, TreeView, DockPanel, WrapPanel, ViewBox, Expander, NumericUpDown, AutoComplete et al
  • Source code will also be made available

Visual Studio 2010 will ship with a Silverlight 2 designer, based on the existing WPF designer.

We should also expect a major release of Silverlight next year, including things like:

  • H264 media support
  • Running Silverlight applications outside of the browser
  • Richer graphics support
  • Richer data-binding support

Whew.  Take a breath..

David Treadwell – Live Services

While we were all still reeling from Scott Gu’s segment, David Treadweall, Corporate VP, Live Platform Services at Microsoft, came out to talk about Live Services.

The Live Services offerings are basically a set of services that allow applications to interface with the various Windows Live properties.

The key components of Live Services are:

  • Identity – Live ID and federated identity
  • Directory – access to social graph through a Contacts API
  • Communication & Presence – add Live Messenger support directly to your web site
  • Search & Geo-spatial – including mashups on your web sites

The Live Services are all made available via standards-based protocols.  This means that you can invoke them from not only the .NET development world, but also from other development stacks.

David talked a lot about Live Mesh, a key component of Live Services:

  • Allows applications to bridge Users / Devices / Applications
  • Data synchronization is a core concept

Applications access the various Live Services through a new Live Framework:

  • Set of APIs that allow apps to get at Live Services
  • Akin to CLR in desktop environment
  • Live Framework available from PC / Web / Phone applications
  • Open protocol, based on REST, callable from anything

Ori Amiga Demo

Ori Amiga came out to do a quick demonstration of how to “Meshify” an existing application.

The basic idea of Mesh is that it allows applications to synchronize data across all of a user’s devices.  But importantly, this means—for users who have already signed up for Live Mesh.

Live Mesh supports storing the user’s data “in the cloud”, in addition to on the various devices.  But this isn’t required.  Applications could use Mesh merely as a transport mechanism between instances of the app on various devices.

Takeshi Numoto – The Closer

Finally, Takeshi Numoto, GM, Office Client at Microsoft, came out to talk about Office 14.

Office 14 will deliver Office Web Applications—lightweight versions of the various Office applications that run in a browser.  Presumably they can also store all of their data in the cloud.

Takeshi then did a demo that focused a bit more on the collaboration features of Office 14 than on the ability to run apps in the browser.  (Running in the browser just works and the GUI looks just like the rich desktop-based GUI).

Takeshi showed off some pretty impressive features and use cases:

  • Two users editing the same document at the same time, both able to write to it
  • As users change pieces of the document, little graphical widget shows up on the other user’s screen, showing what piece the first user is currently changing.  All updated automatically, in real-time
  • Changes are pushed out immediately to other users who are viewing/editing the same document
  • This works in Word, Excel, and OneNote  (at least these apps were demoed)
  • Can publish data out to data stores in Live Services

Ray’s Wrapup

Ray Ozzie came back out to wrap everything up.  He pointed out that everything we’d seen today was real.  He also pointed out that some of these technologies were more “nascent” than others.  In other words—no complaints if some bits don’t work perfectly.  It seemed an odd note to end on.
